Thoracolumbar Stabilization
AEONEX System
A comprehensive stabilization system engineered for accuracy, control, and a streamlined operative workflow.
Overview
AEONEX simplifies complex spinal procedures with a streamlined design, powerful screw technology, and versatile fixation options, allowing maximum procedural freedom and surgical efficiency.
Clinical Applications
AEONEX is indicated for:

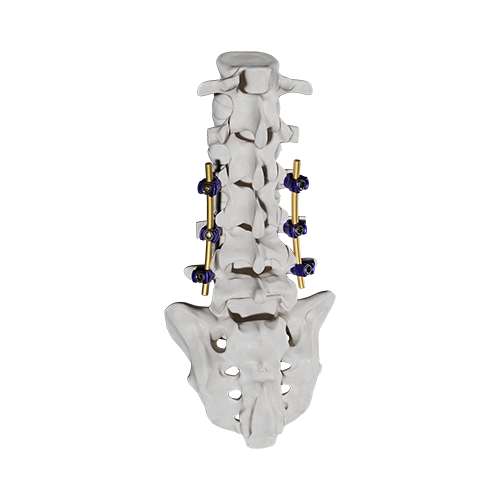

- Posterior spinal stabilization
- Trauma management, tumor‑related stabilization, deformity correction
AEONEX Implant Specifications
A full array of screws and connectors to address diverse patient anatomies and surgical needs.
Mono‑Axial Screws
| Ø (mm) | 25mm | 30mm | 35mm | 40mm | 45mm | 50mm | 55mm |
|---|---|---|---|---|---|---|---|
| 4.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 5.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 6.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |

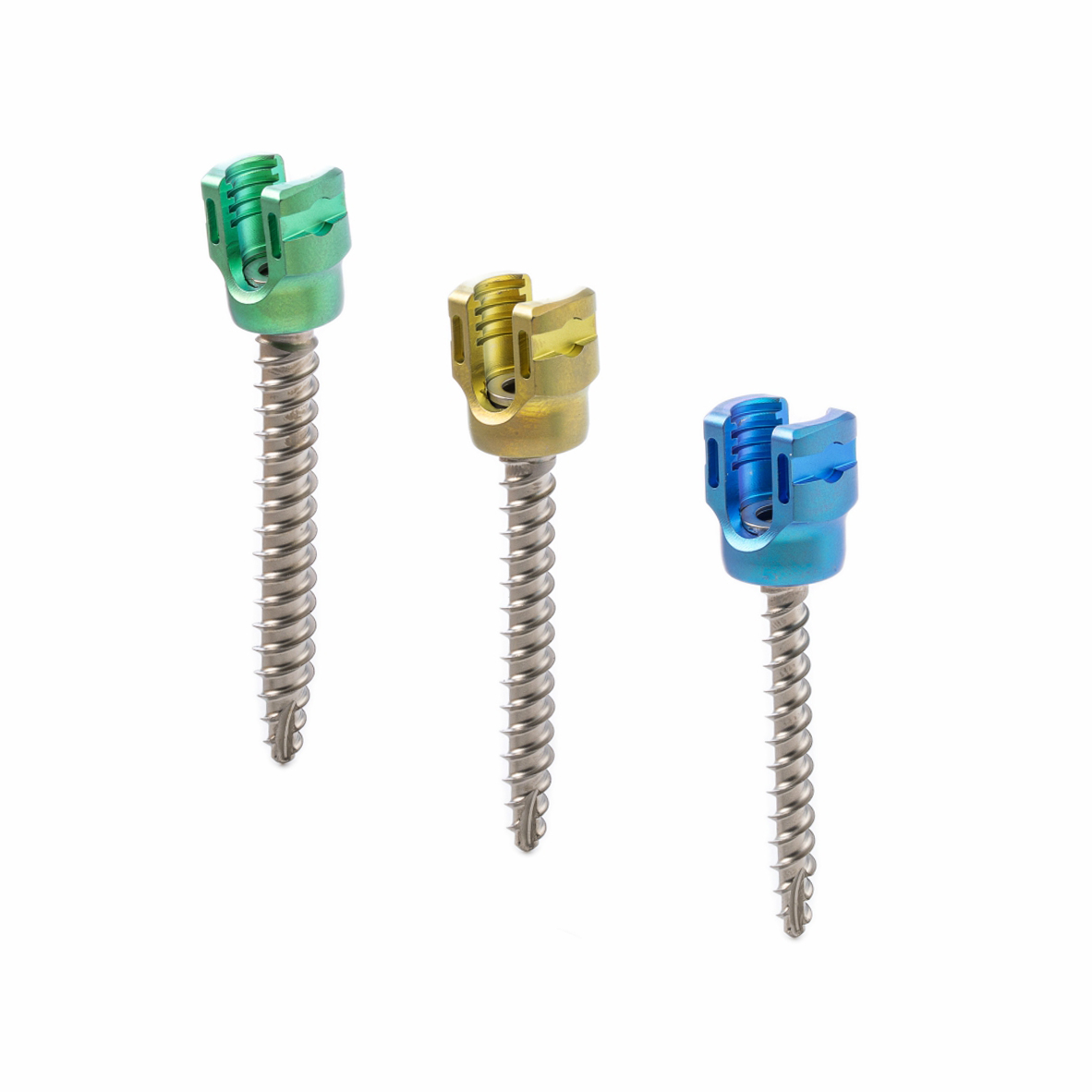

Multi‑Axial Screws
| Ø (mm) | 30mm | 35mm | 40mm | 45mm | 50mm | 55mm | 60mm | 65mm |
|---|---|---|---|---|---|---|---|---|
| 5.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 6.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 7.2 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Key Features & Benefits
AEONEX simplifies complex spinal procedures with a streamlined design, powerful screw technology, and versatile fixation options, allowing maximum procedural freedom and surgical efficiency.
Advanced Locking Nut
Robust box-thread design withstands high forces and reduces the risk of cross-threading.
Optimized Screw Design
Self-tapping, double-lead thread enables rapid insertion and ensures safe bicortical purchase.
Intraoperative Flexibility
Multi-axial screws provide ±30° angulation, facilitating complex anatomy management.
Reliable Fixation
Secure connection sleeve and streamlined rod reduction ensure secure fixation.
